Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs

GUANGHUA is a very professional company. I am very happy to cooperate with them. I am always content with their efficient delivery.

—— Mr Brown

They will always keep their words, and always put customer's benefit on first consideration, that's why we chose them as a long-term business partner!

—— Mr.Thomas BIttig

Thanks for your good quality product and excellent service, we will come back again!

—— Amarjit Singh

I'm Online Chat Now

Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs

China Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs supplier
Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs supplier Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs supplier Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs supplier Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs supplier

Large Image :  Bronze Coated Tyre Bead Wire for PE Pipe Tensile Strength 1700 - 2300 Mpa Z2 Packs

Product Details:

Place of Origin: China
Brand Name: GangDa
Model Number: GD-01-05

Payment & Shipping Terms:

Minimum Order Quantity: 1 Tonne
Packaging Details: 400 kgs with spooless cores Z-2 Packs, 2 or 3 coills in one pallet
Delivery Time: 25 work day
Supply Ability: 1000 tonnes per month
Contact Now
Detailed Product Description
Applicatiom: PE Pipe Reinforcement Finishes: Bnonze Washed
Size Range: 0.50mm - 1.65mm T/S: 1700 - 2300 MPa
Packaging: Z-2 Pack Standard: GB14450-2003 Or As Per Client's Requirement
High Light:

tire bead wire

,

high carbon steel wire

Specifications:

1. Diameter: 0.50mm 0.60mm 0.70mm 0.80mm 0.90mm 1.00mm 1.10mm 1.20mm 1.30mm
    Diameter Tolerance: +/- 0.02mm
2. Finishes: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength:  1700 – 2300 Mpa   or as per client's request
5. Steel Grade: High Carbon Steel  C1065  C1070  C1072

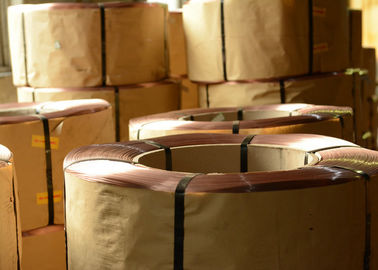

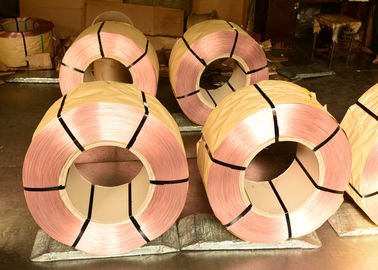

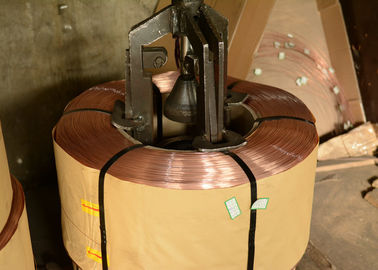

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
                    ID: 355mm Min.
                    OD: 720mm Max.
                    Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification

Description:

Bronze Coated Tyre Bead Wire for PE Pipe is manufactured from quality high carbon wire rods, with superior surface coating and and are used for the reinforcement of all sorts of PE pipe.

Applications:

PE Pipe

Competitive Advantage:

Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
