Flexible Duct Bronze Coated Bead Wire Diameter 0.78 - 1.50mm Tensile Strength 1750 – 2300 Mpa. Pack Z2 Packs
Specifications:
1. Diameter: 0.78mm 0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.30mm 1.50mm
Diameter Tolerance: +/- 0.02mm
2. Finishes: Bronze coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength: 1750 – 2300 Mpa
5. Steel Grade: High Carbon Steel C1070

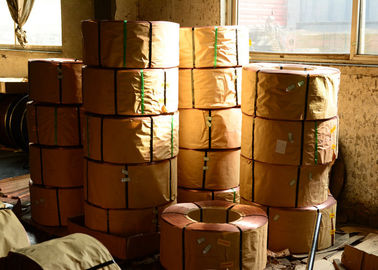

6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm Min.
OD: 720mm Max.
Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification
Description:

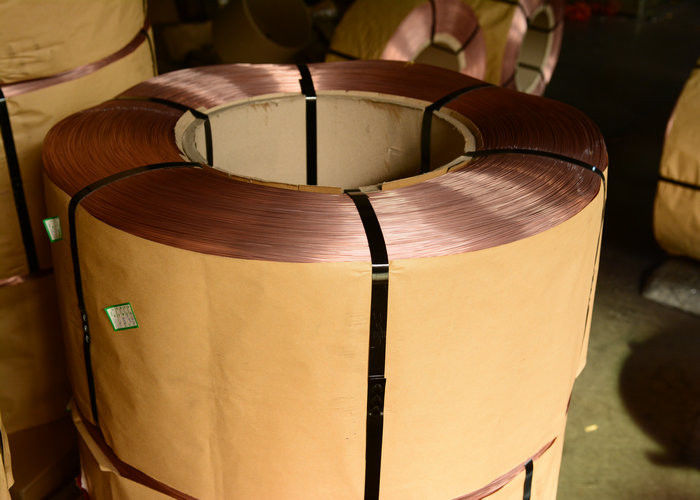

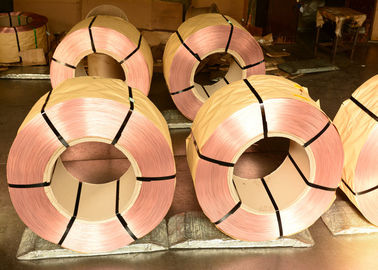

Bronze Coated Bead Wire is from ZJG GUANGHUA, made for Flexible air duct, as the reinforcement of the duct.
Applications:
Flexible ducting
Hose reinforcing
Competitive Advantage:
Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
Clear wire surface
